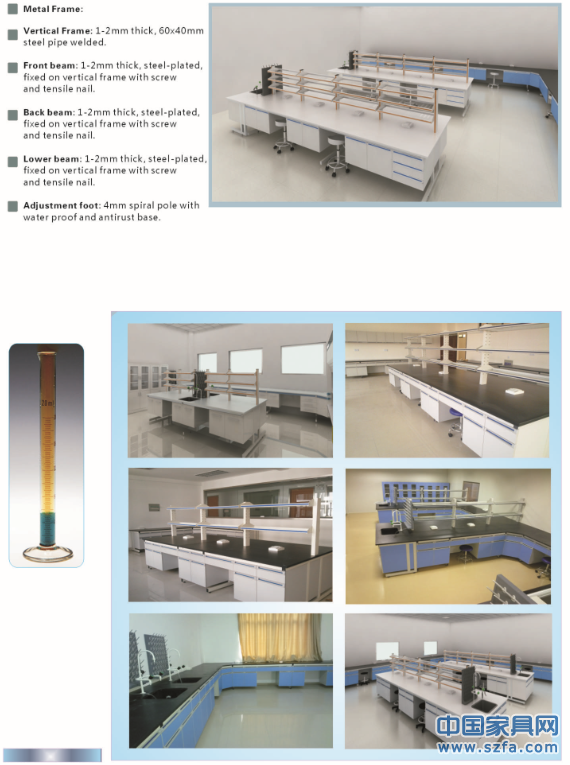

Metal
Front beam: 2mm thick, steel-plated, fixed on vertical
Back beam: 2mm thick, steel-plated, fixed on vertical
Lower beam: 2mm thick, steel-plated, fixed on vertical
Adjustment foot: 4mm spiral pole with water proof and antirust base.
Work surface: 12.7mm acid and alkali resistance plate, Lip at the front edge of the work surface ensures that any spillage is containedwithin the work zone, brand being self-chosen.
Door: 18/16mmEOUJIA high quality plate, polyester resin coating treatment, water proof PVC sealing edging.
Hinge: high quality hinge special for laboratory.
Side plate: 18/16mmEOUJIA high quality plate, polyester resin coating treatment, water proof PVC sealing edging.
Drawer bottom plate: 18/16mmEOUJIA high quality plate, polyester resin coating treatment, water proof PVC sealing edging.
Handle: ABS or aluminum alloy tailor-made for laboratories.
Laminate: 18mmEOUJIA machine-made plate, polyester resin coating treatment, water proof PVC sealing edging.
Electrical Power: 220V socket,
Adjustment:water proof.
Baseboard: 18mmEOUJIA machine-made plate, externally bonded with 100mm anti-fire plate, equipped with ABS high low control angle to isolate vapor.
Pipe sink: 18mm high-density fiberboard, surface bonded with white plate, sealing treatment at the edge.
Sink: 6mm PP made in Taiwan, strong acid and strong alkali resistance, integral forming.
Water fittings: copper single faucet resisting acid and alkali through paint baking, PVC outlet easily for disassemble and cleaning, made in Netherlands.
Falling water head: filtering with odor blocking and water proof function, easily for disassemble and maintenance (pp three elements is equipped, double protection)
Reagent shelf: first class cold rolled steel plate through acid bathing and epoxy baking.
Guardrail: made of aluminum alloy, paint baked and plastic sprayed. Laminate of medicine shelf: 10mm explosion protection glass, high low control button, power switch can be installed on the lower part of the medicine shelf.

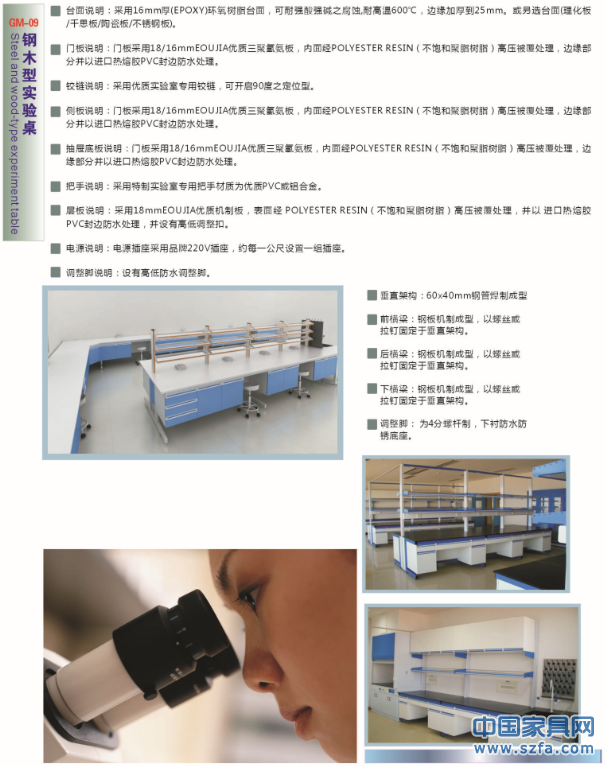

品牌型號:蘇州博蘭特---型號GM-09
尺寸規格:常規尺寸為長度依照要求/靠邊桌寬度
臺面說明:采用
框架說明: 采用40*60鍍鋅方管焊接成型, 表面噴涂75-80um奧地利老虎牌(TIGER)戶外抗腐蝕環氧樹脂粉體.
柜體說明:采用
面板說明: 采用
滑軌說明:抽屜導軌為廣東東泰(DTC)三節超靜音高檔滑軌.
鉸鏈說明:柜門鉸鏈采用廣東東泰(DTC)氣壓泵緩沖型高檔鉸鏈.
把手說明:抽屜及柜門把手采用PVC一字隱形抗腐蝕實驗室專用把手.
電源說明:電源插座為86型220V
調節角說明:為適應地面平整柜體底部設有為M8螺竿塑料調節腳4只.
